Refurbished Chest

A while back I had mentioned that Siri and I found a chest at ReStore and were going to, well, restore it. Today was the day! I had previously sanded it down in an attempt to get the old finish off of it and find bare wood. After a lot of that I realized that since we were painting it removing the old finish wasn't necessary. So I sanded the entire thing to give the new paint something to adhere to.

Started with the cover and hardware removed.

After sanding for paint.

After sanding, I tried out some white milk paint I picked up at Woodcraft. In retrospect I should have primed it first since the wood was very old and absorbed a great deal of the paint as seen below.

Milk paint turned out badly.

In order to add some character to the chest I bought some 1x3 select pine boards and added some decorative framing to emulate a panel look on the chest. This was my first chance to use one of my new tools as well: a brad nail gun.

The brad nailer made this go much more quickly.

Trimming the corners.

Front has a divider.

You may be able to notice in the picture showing the corner that one of the boards is slightly narrower than the other. This was done purposely. The boards are 2 1/2" wide and in order to have the corners look uniform I took off 3/4" from one side board which, when butted up against the front corner board that is 3/4", made it appear 2 1/2" matching the front board. Next up was the top panel. This took some finagling to get it to look right. To make it the same dimensions as the box with the new framing I ripped some boards to 3/4" and nailed them on to the edges of the top. Then I added framing similar to what I attached to the main box except that I let it overhang about 3/4". This gives the box a bit more character and give a handle to open the lid by.

Adding to the top to match the box size.

The top framed and set on top.

With all of the framing done it was time to sand again! This sanding helped to smooth out the various joints and the wood fill I used in the nail holes and some small dings and dents. After I vacuumed the sawdust off and started priming. I put two coats of Zinsser on and will paint it tomorrow night.

Sanded.

Primed.

Let's Go Sledding!

This morning I spend some time down in the workshop getting a few projects done that I have been putting off for some time: table saw sleds and painting the viking chair. I made two sleds for the saw, a crosscut sled and a panel sled. The first step in making sleds is to make your runners that go in the miter slots. I used a small piece of purpleheart I picked up at Woodcraft for my runners.

Purpleheart runners. It is much more purple in person.

This was my first time working with actual hardwood and it is much different to work with than the pine that I am used to. I made sure to pre-drill all of my screw holes so I wouldn't split the wood. I cut runners to fit in the 3/8" x 3/4" miter slots on my table. Working with such small pieces can be dangerous so always exercise caution. I also made a featherboard to help hold the work pieces against the fence for more uniform cutting. The first one didn't turn out so good, especially since there was a knot in the board and the feathers just broke off. The next attempt was much better as I cut the end at an angle and it was a narrower board to work with.

The first featherboard didn't quite work out. Note the knot.

The second iteration. Angled at 30 degrees.

Clamped to the miter gauge to guide the runners in.

After the runners were made I moved on to the base of the sled. I used 1/2" MDF cut to about 34" wide and 24" deep. I placed the runners in their slots and put the base on top, aligning all three pieces with the edge of the table. I pre-drilled and countersunk the screws to faster the base to the runners.

Cutting the base to size from 1/2" MDF.

Lining up the runners and base before attaching.

Attached with pre-drilled and countersunk screws.

Next was the front and back of the sled which I made from two pieces of 3/4" MDF laminated together. The back is the only one of the two pieces that really needs to be aligned properly. I cut a small slot in the base with the table saw and lowered the blade back down. I placed a scrap piece of lumber in the slot and used a large square to align the back fence with the saw slot. I roughly followed what Marc Spagnuolo from The Wood Whisperer shows in this video. When laminating the fences, I broke a couple of my cheap Home Depot clamps. Looks like I need some nicer ones in the near future.

The finished sled. A bit heavy.

I need more clamps!

The second project was a small panel sled. This was made using a lot of the same principles but only occupies one side of the table.

Attached the purpleheart runner.

Using my largest square to align the fence.

Complete!

And finally, the painting of the viking chair! I am using General Finishes Emerald Milk Paint. I put two coats on after doing some additional sanding I did not complete last time.

First coat of Emerald.

I would like to build a few more featherboards, but I will just make them when I need them as they only take a few minutes to cut. I bought this air nailer set from Woot at a good price and I plan to use the brad nailer for the bookcase and attaching the edge finish on my computer desk.

Viking Chairs!

A chair fit for a marauder! Well, two chairs actually. My good friend John came over and we built a pair of small chairs based on Steve Ramsey's designs. Ramsey is a great person to follow if you're interested in getting into woodworking. He has fairly simple projects, most of which can be made using a basic set of power and hand tools. Ramsey does have quirky humor to get past first though.

But back to our project! We started with a couple of half sheets of 1/2" BCX plywood. If you're unfamiliar with what BCX means then keep reading. Plywood is typically graded on a letter scale so BCX means that one side (B side) is sanded fairly smooth but may have some voids that are filled with wood fill. The other side (C) is not quite smooth and may have some unfilled voids. The X stands for exterior grade glue between the layers of wood. Since this will be used outside, the exterior grade glue will be needed and we are going to paint the chairs with milk paint to protect the wood.

The first step was to cut the plywood down and laminate them together to form boards 1" thick. And this is where I realized I need more clamps! If ever you need to buy a woodworking a gift, clamps are a safe bet.

Cut the plywood to about 10" wide and laminated them.

We added countersunk screws to help hold where clamps should be.

One chair laminating complete.

Here are some unfilled voids on the 'C' sides which were glued together.

Adding some screws.

All glued!

After we let the glue set up for about 45 minutes we started squaring up the edges. I started with a straightedge and a router to get one side straight and then moved it to the table saw to square up the other side. Having John around to act as the outfeed table since I don't have one (yet) was very helpful and made the job a lot safer.

Straight bit in the router following a straight edge.

Squaring the other side, John is the outfeed table.

Next we squared up the ends. For this step I set up a sacrificial fence on the table saw. This was simply a piece of 1/2" MDF that was clamped to my fence and partially covered the blade. I started with the blade below the table surface and, with saw on, raised the blade thereby cutting an arched groove for the blade to ride in. Part of the blade protrudes beyond the sacrificial fence and this is what we used to square the ends. By using the miter gauge to guide the boards along the sacrificial fence the table saw takes off a fraction of an inch and squares the end of the board.

Sacrificial fence installed.

We focused on the seats of the chairs next. By following the plan, we basically made a 7" wide through tenon that would slide through a mortise in the back of the chair. The long cuts we made on the table saw and finished with the jigsaw. We cut the short shoulders with the jigsaw as well, removing strips about 20" long by 1 1/2" wide.

Using a combination square to help layout the lines.

First cuts were made on the table saw.

Finished with the jigsaw, rounding the outside corners as well.

Sanding!

Sanding the rounded corners.

The chair backs were next to do. I attempted to add a bit of flourish to my chair and John cut a simple curve on the top. The mortise was cut with a paddle bit in the drill and finished with the jigsaw.

My poorly made handle. A narrower jigsaw blade would have made this easier.

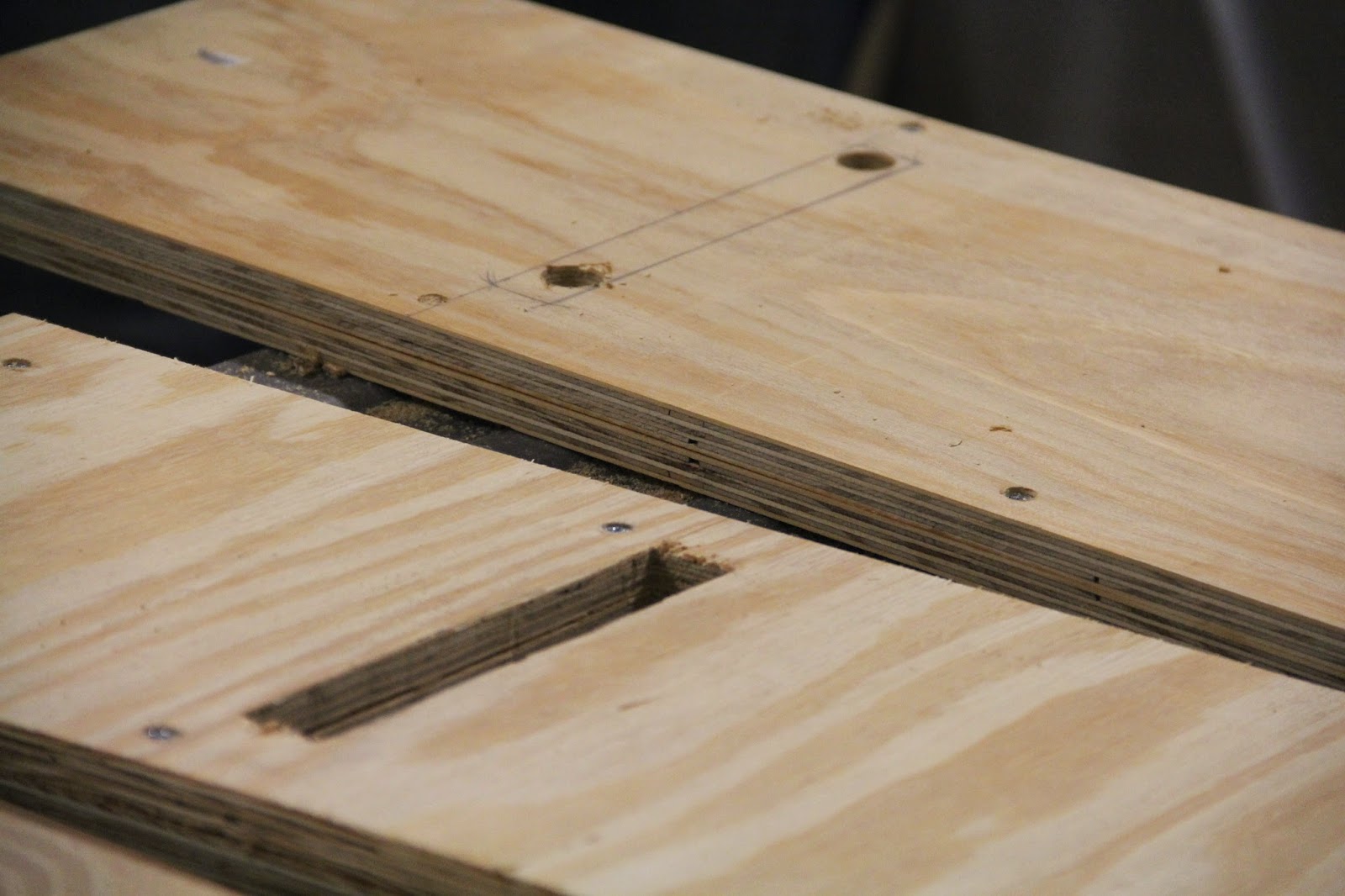

John's mortise is started with the holes to make room for the jigsaw to be used.

And this is about where disaster struck. Or rather, my fat ass struck. In sitting in my chair I leaned back a bit and heard cracking wood. Reinforcement was needed desperately.

Disaster!

My chair in its unbroken state.

John's chair in all its glory.

John and I used some of the scraps we cut off to reinforce the backs. By mounting the narrow strips we cut from the seats on the chair backs, we added a bit of strength. I also added some plywood to the sides to add more strength since my chair already had cracks in it. I took a single sheet and mounted it to these reinforcement boards to make a holder for the seat when the chair is disassembled.

Completed chairs.

The reinforcements and holder on the back side of my chair back.

The seat in the holder.

My chair is much stronger now but much heavier than I had thought it would be. Both John and I need to paint our chairs. Mine will be emerald green and John had picked a dark red. I need to do more sanding before I paint as the seat fits too snugly in the holder and paint will either prevent it from fitting at all or it will just be scraped off.

As with all my projects I learned quite a lot. Narrower jigsaw blades will help with the curves I wanted to cut. I also would benefit from building a crosscut sled for the table saw.

Here is a link to the SketchUp plan for the basic chairs. I would recommend checking out SketchUp for woodworkers as it is a good tutorial on how to use the program for planning and designing your builds.

Small Projects

Since my last post, Siri and I have been quite busy. We've spent the weekend in Chicago, a weekend in Door County, and an entire week in Washington D.C. Suffice to say that leaves little time for woodworking. However, I did get two small projects done, one of which I had been meaning to do for some time now. I built myself a new computer desk and put together a sofa table. The sofa table was a quick project for Siri and allowed me to test a new finish: Minwax Red Oak. The finish turned out much darker that I would have liked and not quite as even as I had hoped. I brushed it on and in retrospect I think I should have wiped it on with a cloth. I did not put on any top coat as I don't plan on keeping this particular table around for too long. I would like to replace it with something constructed out of something nicer than 2x4 construction grade lumber.

Here is the sofa table behind the...well, sofa.

I made trapezoidal blocks to fasten the halves together.

A bit darker than I had anticipated.

A bit uneven. A second coat may correct this but make it even darker.

With the sofa in the normal position.

The other project was one for me: a computer desk. I started with a solid core slab door I found at ReStore and cut to size. The cutting left the particleboard core exposed in some places and they will eventually be covered with some edging or molding. I haven't yet decided on that yet, so all four edges are currently unfinished but the desk is basically done. I pieced together a frame from black plumbing pipe I picked up at Home Depot. I would like to paint this in the future, but for now it looks just fine. I placed some felt pads on the bottom of the frame to make it easier to slide on the floor and to prevent scratches on the hardwood.

Right side.

Full desk is about 71" wide.

Black pipe frame.

Gel stained top.

Exposed core to be covered.

The finish on the desk is composed of some General Finished Java Gel Stain and three coats of their poly top coat. I probably could use more layers of the poly, but I would like to see how well this holds up. I chose the gel stain over regular stain since I didn't want to risk sanding through the veneer trying to remove the existing finish. The gel stain was applied with a foam brush and then wiped with a clean cloth. I could have painted the finish on as well, which would have given me a much darker result. I'm happy with the current color, though the door had some scratches and marks that really show with the gel stain on top. If I make another one of these I will be sure to get a cleaner, undamaged door.

I also requisitioned some new tools! I purchased a Porter Cable router from Amazon for just a few dollars more than the reconditioned version from my usual tool supplier: CPO Outlets. This will come in handy for adding finishing touches to my work as well as allow me to cut dados (with a jig). I also picked up a Porter Cable jigsaw, this tool did come from CPO. It was on sale and I got a great deal on it. I still have to buy some blades for it but I haven't needed to use it yet. I will probably use it this weekend when my friend John comes over to make viking chairs with me. I plan to try out the General Finishes milk paint on my chair so look forward to that!

New tools! (And on the cheap)
